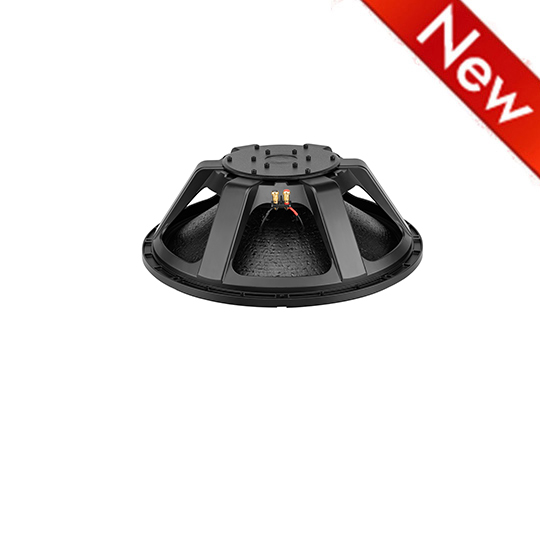

21NDS151GK1 Subwoofers 21 inchs
Notes
- 6 INCH CCA VOICE COIL
- 97.8 dB/SPL SENSITIVITY
- 5600 WATT PROGRAM POWER HANDING
- FEM OPTIMIZED MOTOR AND SUSPENSIONS
- SYMMETRIC FLUX DENSITY AND INDUCTANCE BEHAVIOUR
- OPTIMIZED COOLING SYSTEM
- DOUBLE SPIDER
- RESONANCE FREE AND HEAVY DUTY BASKET DESIGN
- TRIPLE ROLL SURROUND
- TRIPLE ROLL SURROUND
GENERAL SPECIFICATIONS

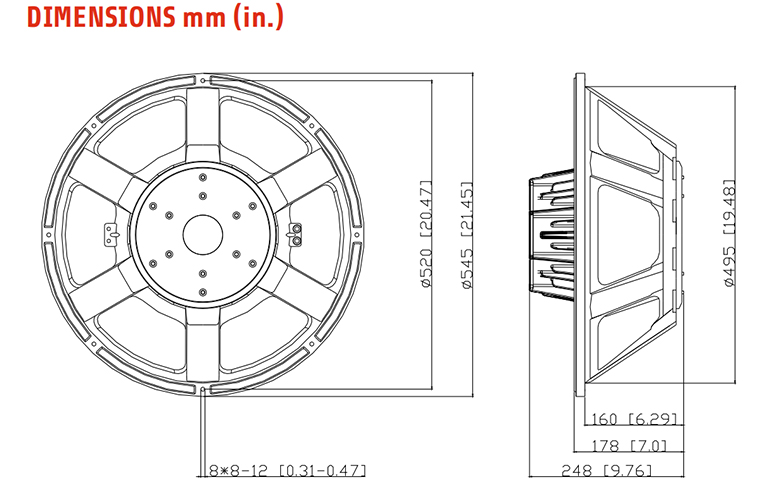

| Nominal diameter | 620(24) mm (in.) |
|---|---|
| Nominal impedance | 8 Ω |
| Minimum impedance | 7.6 Ω |
| Program power (1) | 5600 W |
| AES Power rating(2) | 2800 W |
| Sensitivity (3) | 97.8 dB |

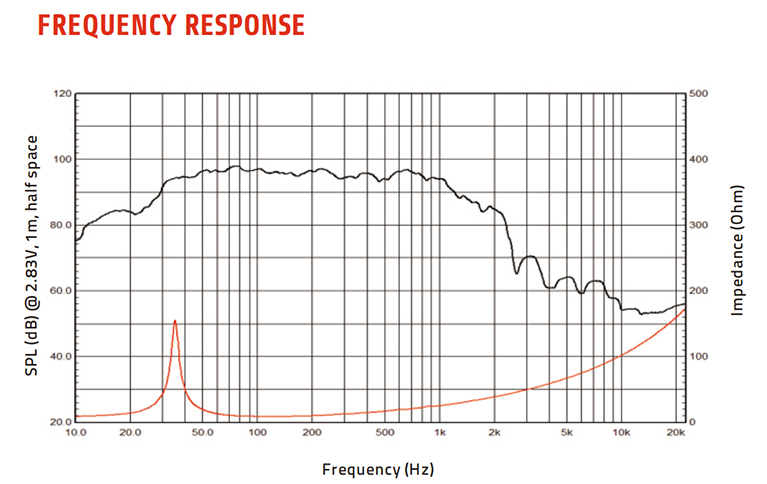

| Frequency range | 38~1000 Hz |
| Voice coil diameter | 151(6) mm (in.) |
| Chassis material | Aluminium |
| Magnet material | Neodymium |
| Magnet dimensions (ODxIDxh) | 145x60x10 mm |
| Coil material | CCAW |
| Former material | Glass Fiber |
| Xmax(4) | 25 mm |
SMALL SIGNAL PARAMETERS
| DC resistance(Re) | 5.7 Ω |
|---|---|
| Resonance frequency(Fs) | 38.5 Hz |
| Moving mass(Mms) | 565 g |
| Compliance(Cms) | 0.02 mm/N |
| Force factor(BL) | 39.5 N/A |
| Mechanical Q-factor(Qms) | 9.17 |
| Electrical Q-factor(Qes) | 0.47 |
| Total Q-factor(Qts) | 0.45 |
| Equivalent air volume(Vas) | 197.8 I |
| Voice coil Inductance(Le) | 2.89 mH |
| Diaphragm area(Sd) | 2507 cm2 |
| Reference efficiency(Eta O) | 3.61 % |
SHIPPING INFORMATION
| Net weight | 20.8 Kg |
|---|---|
| Multipack size (1) (W x D x H) | 680x680x333 mm |
| Multipack weight | 24.5 Kg |
OTHERS
(1)Program power is defined as 3 dB greater than AES Power.
(2) Tested for two hours using a
(2) Tested for two hours using a
continuous, band-limited pink noise signal as per AES 2-1984 Rev. 2003. Loudspeaker tested
in free air.
(3) From T/S parameters, measured with LMS DA LPM module.
(4) The Xmax is calculated as: (Hvc - Hg)/2+ Hg/4. Hvc is the voice coil height and Hg the gap height.
(3) From T/S parameters, measured with LMS DA LPM module.
(4) The Xmax is calculated as: (Hvc - Hg)/2+ Hg/4. Hvc is the voice coil height and Hg the gap height.
(5) TheXmech is calculated as: (Hvc - Hg)/2 +(Hg-2). Hvc is the voice coil height and Hg the gap height.
(6) Thiele-Small parameters are measured after preconditioning: a) at 20°C- 22°C, 50% humidity
for 2 hours; b) by LMS LSI measurement.
