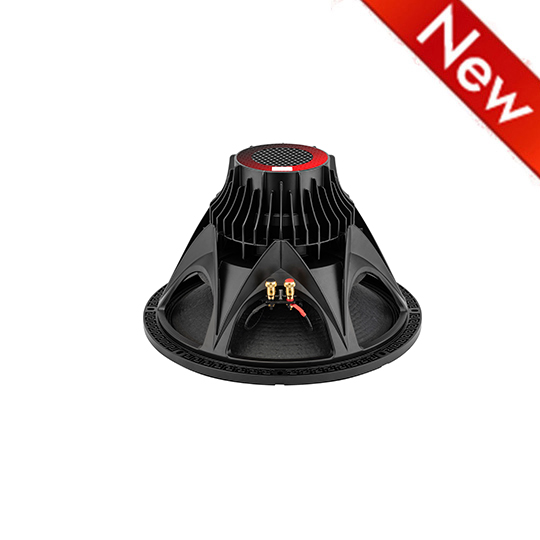

15NDS100G3 Subwoofers 15 inchs

Notes

- 4 INCH COPPER VOICE COIL

- 96.2 dB/SPL SENSITIVITY2600 WATT PROGRAM POWER HANDING

- FEM OPTIMIZED MOTOR AND SUSPENSIONS

- SYMMETRIC FLUX DENSITY AND INDUCTANCE BEHAVIOUR

- OPTIMIZED COOLING SYSTEMDOUBLE SPIDER

- RESONANCE FREE AND HEAVY DUTY BASKET DESIGN

- TRIPLE ROLL SURROUND

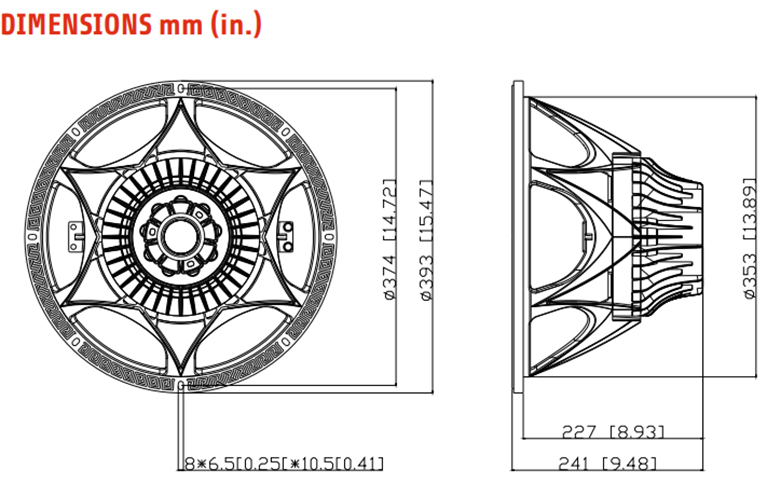

GENERAL SPECIFICATIONS

Nominal diameter	393（15） mm (in.)
Nominal impedance	8 Ω
Minimum impedance	7.5 Ω
Program power (1)	2600 W
AES Power rating(2)	1300 W
Sensitivity (3)	96.2 dB
Frequency range	33~1500 Hz
Voice coil diameter	100（4） mm (in.)
Chassis material	Aluminium
Magnet material	Neodymium
Magnet dimensions (ODxIDxh)	SV mm
Former material	Glass Fiber
Xmax(4)	16 mm

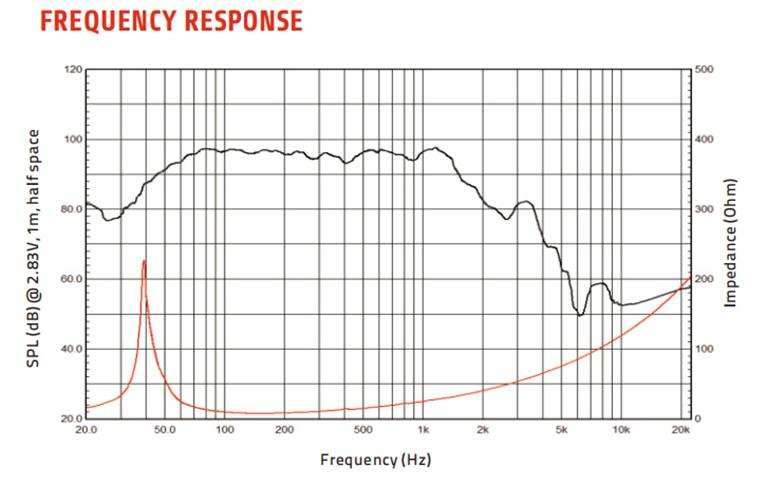

SMALL SIGNAL PARAMETERS

DC resistance(Re)	5.7 Ω
Resonance frequency(Fs)	40.4 Hz
Moving mass(Mms)	242 g
Compliance(Cms)	0.06 mm/N
Force factor(BL)	31.7 N/A
Mechanical Q-factor(Qms)	23
Electrical Q-factor(Qes)	0.34
Total Q-factor(Qts)	0.34
Equivalent air volume(Vas)	76.3 I
Voice coil Inductance(Le)	3.1 mH
Diaphragm area(Sd)	924 cm²
Reference efficiency(Eta O)	2.1 %

SHIPPING INFORMATION

Net weight	7.9 Kg
Multipack size (1) (W x D x H)	410x410x272 mm
Multipack weight	9.2 Kg

OTHERS

(1)Program power is defined as 3 dB greater than AES Power.
(2) Tested for two hours using a

continuous, band-limited pink noise signal as per AES 2-1984 Rev. 2003. Loudspeaker tested

in free air.
(3) From T/S parameters, measured with LMS DA LPM module.
(4) The Xmax is calculated as: (Hvc - Hg)/2+ Hg/4. Hvc is the voice coil height and Hg the gap height.

(5) TheXmech is calculated as: (Hvc - Hg)/2 +(Hg-2). Hvc is the voice coil height and Hg the gap height.

(6) Thiele-Small parameters are measured after preconditioning: a) at 20°C- 22°C, 50% humidity

for 2 hours; b) by LMS LSI measurement.
