ND4599 HF Drivers 3.5 inches
Notes
- 2x3.5INCH SV VOICE COIL
- PERFECT ACOUSTICAL COUPLING
- EXTREMELY HIGH EFFCIENCY
- 123 dB/SPL SENSITIVITY
- PROVIDES 6 dB MORE SOUND PRESSURE THAN A
COMPARABLE SINGLE VOICE COIL DRIVER
- ULTRA LOW DISTORTION

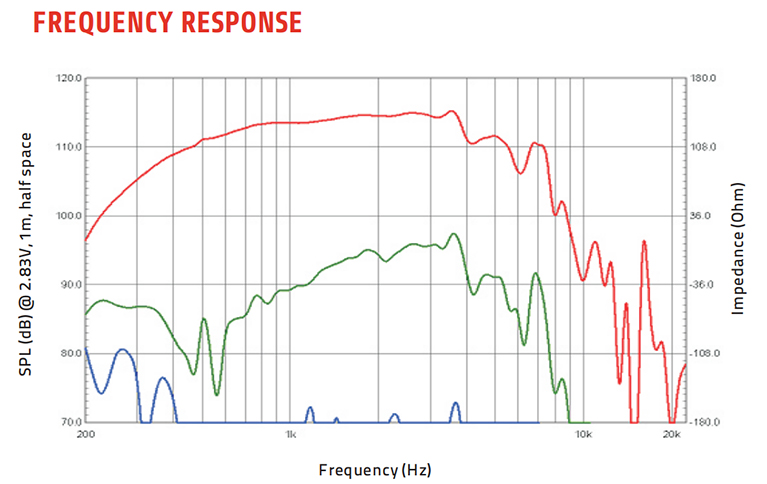

- 200-9000 Hz FREQUENCY RANGE
- SPECIALLY DESIGNED FOR EXTREME HIGH OUTPUTAPPLICATIONS
GENERAL SPECIFICATIONS
| Throat diameter | 50(2) mm (in.) |
|---|---|
| Nominal impedance | 2x8 Ω |
| Minimum impedance | 2x6.6 Ω |
| Program power (1) | 2000W (2 x 1000 W above 400 Hz) W |
| AES Power rating(2) | 400W (2 x 200 W above 300 Hz) W |
| Sensitivity (3) | 123 on a 40° x 20° waveguide dB |
| Frequency range | 200 ~ 9000 Hz |
| Magnet material | Neodymium |
| Magnet dimensions (ODxIDxh) | 88X55X8 mm |
| Coil material | SV |
| Former material | kapton |
| Voice coil Inductance | 2x 90 (2x 3.5) |
SHIPPING INFORMATION
OTHERS
(1)Program power is defined as 3 dB greater than AES Power
(2)Horn loaded test 2h with continuous,brand-limited(200-20000Hz,12dB/oct)pink noise as per AES 2-1984 Rev.2003.
(2)Horn loaded test 2h with continuous,brand-limited(200-20000Hz,12dB/oct)pink noise as per AES 2-1984 Rev.2003.
(3)Measured on axis at
2.83V,1m, driver loaded with 80°× 60° horn, SPL average in the frequency range 500- 20000 Hz.
(4)High pass filter with slop 12 dB/oct. or higher.
