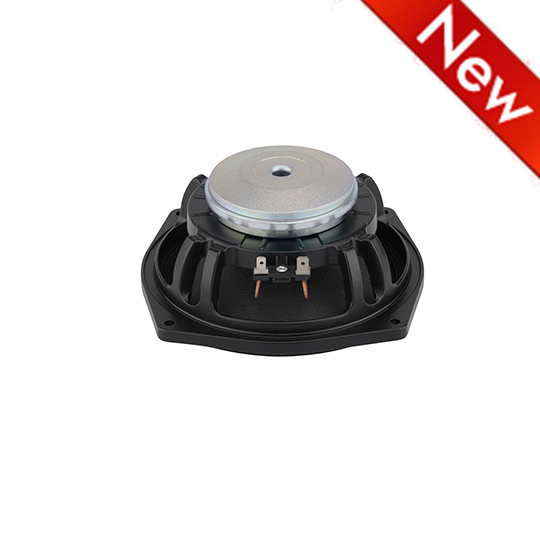

6NDF38T3 MID Drivers 6 inchs
Notes
- 1.5 INCH COPPER VOICE COIL
- 96.3 dB/SPL SENSITIVITY
- 240 WATT PROGRAM POWER HANDING
- IDEAL FOR DIRECT RADIATION AND HORN
-LOADED MIDRANFE APPLICATION
GENERAL SPECIFICATIONS

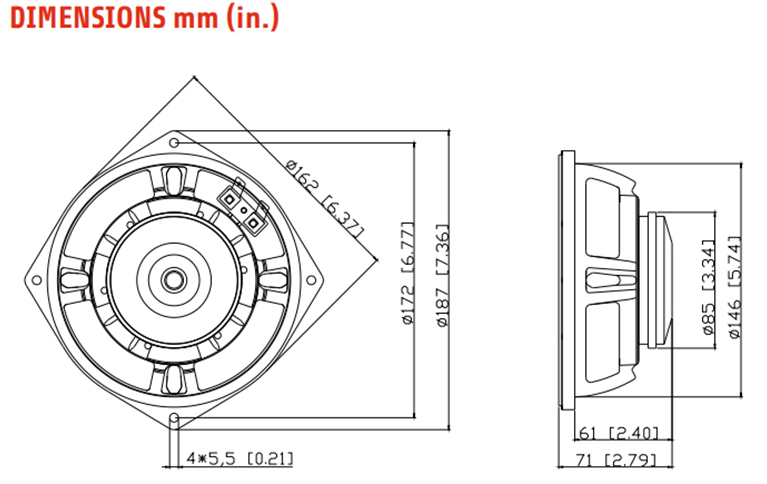

| Nominal diameter | 162-187(6.5) mm (in.) |
|---|---|
| Nominal impedance | 4 Ω |
| Minimum impedance | 5.4 Ω |
| Program power (1) | 240 W |
| AES Power rating(2) | 120 W |
| Sensitivity (3) | 96.3 dB |
| Frequency range | 135~7500 Hz |
| Voice coil diameter | 38.5(1.5) mm (in.) |
| Chassis material | Aluminium |
| Magnet material | Neodymium |
| Magnet dimensions (ODxIDxh) | 85x56x5 mm |
| Coil material | SVR |
| Former material | Glass Fiber |
| Xmax(4) | 2 mm |
| Xmech(5) | 3 mm |
| Gap height | 6 mm |
| Voice coil Winding height | 5 mm |
SMALL SIGNAL PARAMETERS
| DC resistance(Re) | 4.3 Ω |
|---|---|
| Resonance frequency(Fs) | 135.4 Hz |
| Moving mass(Mms) | 10.4 g |
| Compliance(Cms) | 0.13 mm/N |
| Force factor(BL) | 7.1 N/A |
| Mechanical Q-factor(Qms) | 12.6 |
| Electrical Q-factor(Qes) | 0.48 |
| Total Q-factor(Qts) | 0.46 |
| Equivalent air volume(Vas) | 4.5 I |
| Voice coil Inductance(Le) | 0.25 mH |
| Diaphragm area(Sd) | 156 cm2 |
| Reference efficiency(Eta O) | 1.86 % |

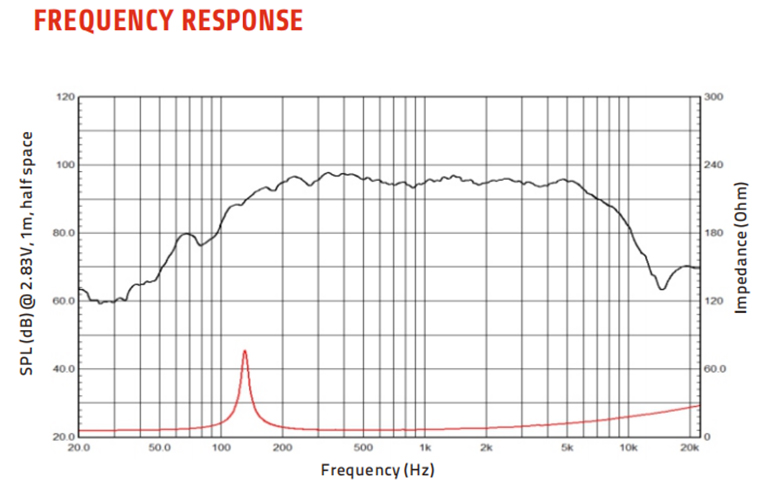

SHIPPING INFORMATION
| Net weight | 0.92 Kg |
|---|---|
| Multipack size (1) (W x D x H) | 445 x 350 x 210 mm |
| Multipack weight | 12 Kg |
OTHERS
(1)Program power is defined as 3 dB greater than AES Power.
(2) Tested for two hours using a
(2) Tested for two hours using a
continuous, band-limited pink noise signal as per AES 2-1984 Rev. 2003. Loudspeaker tested
in free air.
(3) From T/S parameters, measured with LMS DA LPM module.
(4) The Xmax is calculated as: (Hvc - Hg)/2+ Hg/4. Hvc is the voice coil height and Hg the gap height.
(3) From T/S parameters, measured with LMS DA LPM module.
(4) The Xmax is calculated as: (Hvc - Hg)/2+ Hg/4. Hvc is the voice coil height and Hg the gap height.
(5) TheXmech is calculated as: (Hvc - Hg)/2 +(Hg-2). Hvc is the voice coil height and Hg the gap height.
(6) Thiele-Small parameters are measured after preconditioning: a) at 20°C- 22°C, 50% humidity
for 2 hours; b) by LMS LSI measurement.
