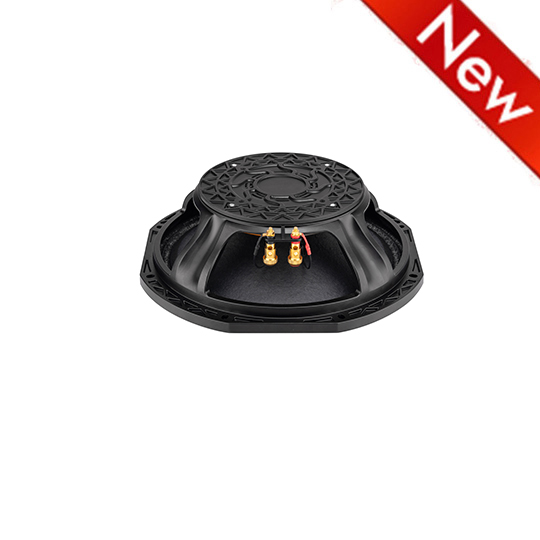

12NDF75K1 LF Drivers 12 inchs
Notes
- 3 INCH COPPER VOICE COIL
- 98 dB/SPL SENSITIVITY
- 800 WATT PROGRAM POWER HANDING
- FEM OPTIMIZED MOTOR AND SUSPENSIONS
- OPTIMIZED COOLING SYSTEM
- RESONANCE FREE AND HEAVY DUTY BASKET DESIGN
GENERAL SPECIFICATIONS

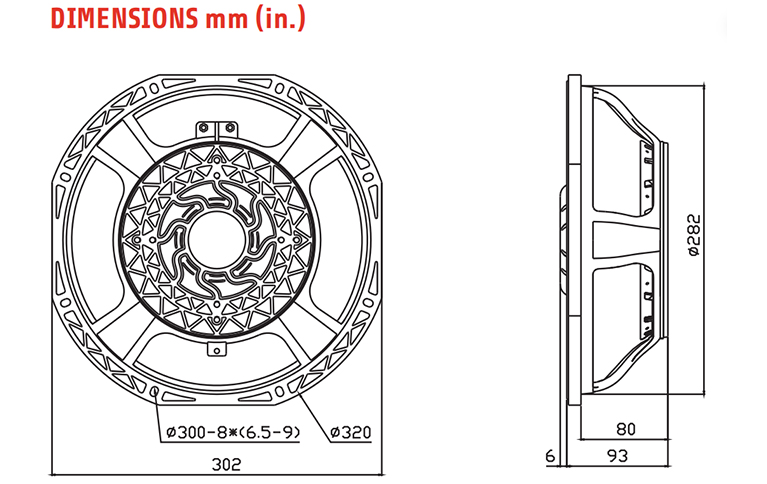

| Nominal diameter | 302-320(12) mm (in.) |
|---|---|
| Nominal impedance | 8 Ω |
| Minimum impedance | 6.3 Ω |
| Program power (1) | 800 W |
| AES Power rating(2) | 400 W |
| Sensitivity (3) | 98 dB |
| Frequency range | 56~3000 Hz |
| Voice coil diameter | 75(3) mm (in.) |
| Chassis material | Aluminium |
| Magnet material | Neodymium |
| Magnet dimensions (ODxIDxh) | 74x15x10 1pc mm |
| Coil material | CCAW |
| Former material | Glass Fiber |
| Xmax(4) | 6.5 mm |
| Xmech(5) | 10.5 mm |
| Gap height | 8 mm |
| Voice coil Winding height | 17 mm |

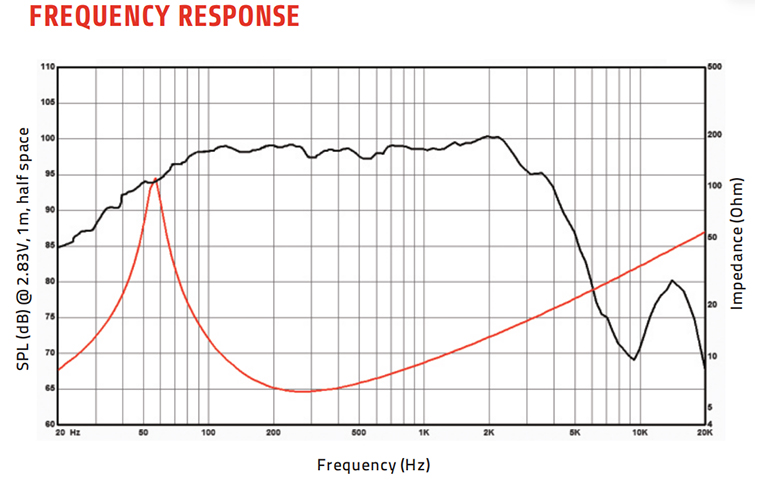

SMALL SIGNAL PARAMETERS
| DC resistance(Re) | 5 Ω |
|---|---|
| Resonance frequency(Fs) | 56 Hz |
| Moving mass(Mms) | 50 g |
| Compliance(Cms) | 0.16 mm/N |
| Force factor(BL) | 17.5 N/A |
| Mechanical Q-factor(Qms) | 7.3 |
| Electrical Q-factor(Qes) | 0.33 |
| Total Q-factor(Qts) | 0.32 |
| Equivalent air volume(Vas) | 77 I |
| Voice coil Inductance(Le) | 0.20 mH |
| Diaphragm area(Sd) | 581 cm2 |
| Reference efficiency(Eta O) | 3.9 % |
SHIPPING INFORMATION
| Net weight | 3.1 Kg |
|---|---|
| Multipack size (1) (W x D x H) | 320x320x130 mm |
| Multipack weight | 3.6 Kg |
OTHERS
(1)Program power is defined as 3 dB greater than AES Power.
(2) Tested for two hours using a
(2) Tested for two hours using a
continuous, band-limited pink noise signal as per AES 2-1984 Rev. 2003. Loudspeaker tested
in free air.
(3) From T/S parameters, measured with LMS DA LPM module.
(4) The Xmax is calculated as: (Hvc - Hg)/2+ Hg/4. Hvc is the voice coil height and Hg the gap height.
(3) From T/S parameters, measured with LMS DA LPM module.
(4) The Xmax is calculated as: (Hvc - Hg)/2+ Hg/4. Hvc is the voice coil height and Hg the gap height.
(5) TheXmech is calculated as: (Hvc - Hg)/2 +(Hg-2). Hvc is the voice coil height and Hg the gap height.
(6) Thiele-Small parameters are measured after preconditioning: a) at 20°C- 22°C, 50% humidity
for 2 hours; b) by LMS LSI measurement.
