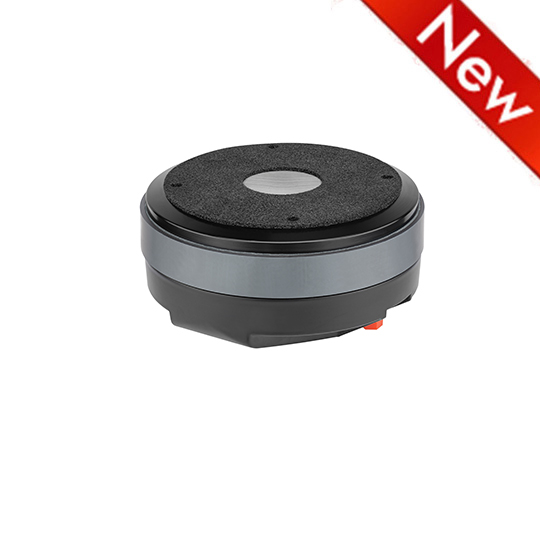

DK6505 HF Drivers 2.5 inches
Notes
- 2.5 INCH CCAR VOICE COIL
- 108 dB/SPL SENSITIVITY
- 180 WATT PROGRAM POWER HANDING
- 900-18000 Hz FREQUENCY RANGE
- TITANIUM DIAPHRAGM AND SUSPENSION
- VOICE COIL COPPER DEMODULATION RING
GENERAL SPECIFICATIONS
| Throat diameter | 36(1.4) mm (in.) |
|---|---|
| Nominal impedance | 8 Ω |
| Minimum impedance | 6.5 Ω |
| Program power (1) | 180 W |
| AES Power rating(2) | 90 W |
| Sensitivity (3) | 108 dB |
| Frequency range | 900~18000 Hz |
| Voice coil diameter | 65(2.5) mm (in.) |
| Magnet material | Ferrite |

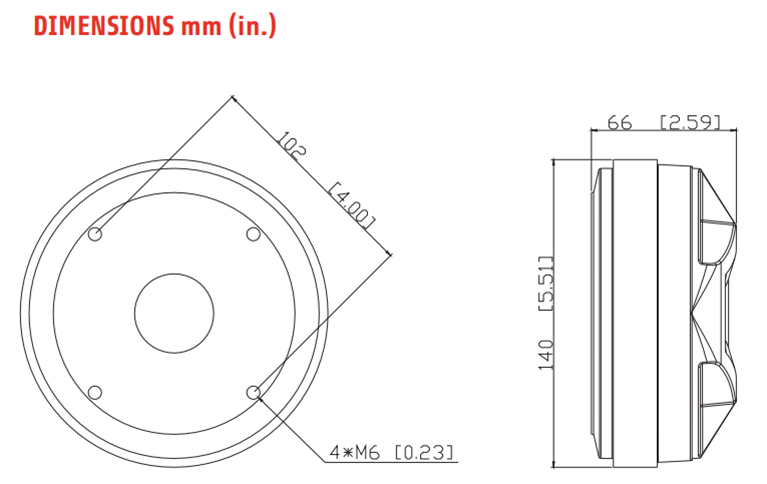

| Magnet dimensions (ODxIDxh) | 140 mm |
| Coil material | CCAR |
| Former material | kapton |
| Diaphragm material | Titanium |
| Voice coil Inductance | 0.10 |
| Flux density | 1.6 T |
| Recommended crossover (4) | 1200 Hz |
SHIPPING INFORMATION
| Net weight | 3.3 Kg |
|---|---|
| Multipack size (4) (W x D x H) | 320x310x90 mm |
| Multipack weight | 14 (4 pcs) Kg |
OTHERS
(1)Program power is defined as 3 dB greater than AES Power.
(2)Horn loaded test 2h with continuous, brand-limited(1200-18000Hz,12dB/oct)pink noise as per AES 2-1984 Rev.2003.

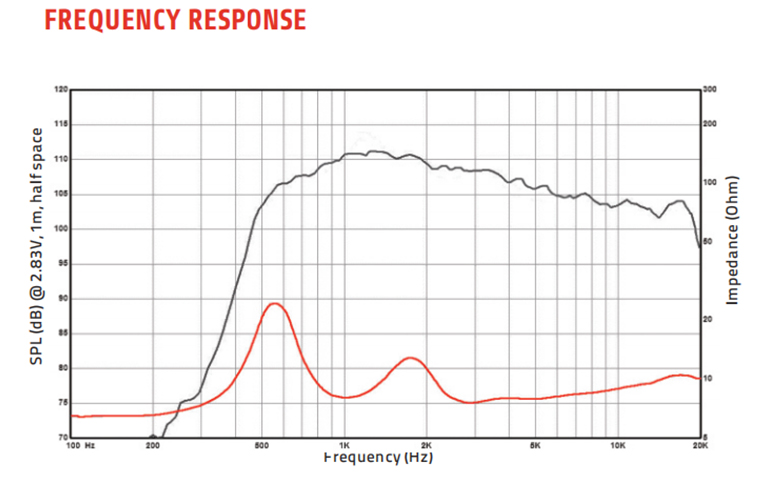

(3)Measured on axis at 2.83V,1m, driver loaded with 90°× 40° horn, SPL average in the frequency range 1200-18000 Hz.
(4)High pass filter with slop 12 dB/oct. or higher
