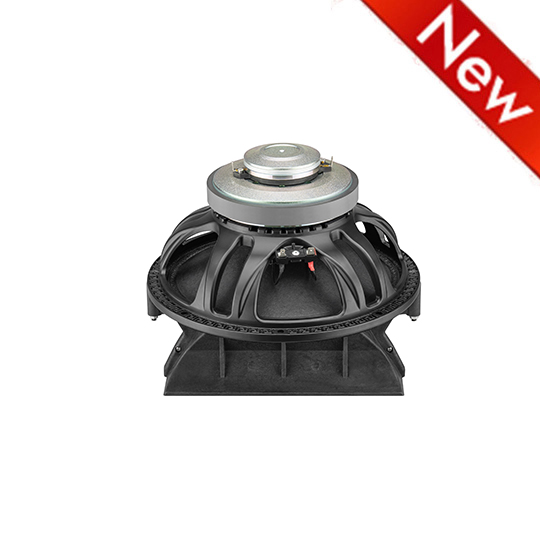

12FTN75TX1 Coaxials 12 inches
Notes
- 3 INCH WOOFER CCA VOICE COIL
- 2 INCH COMPRESSION ALUMINIUM VOICE COIL
- 96.7 dB/SPL SENSITIVITY
- 700 WATT PROGRAM POWER HANDING
- FEM OPTIMIZED MOTOR AND SUSPENSIONS
- OPTIMIZED COOLING SYSTEM
- RESONANCE FREE AND HEAVY DUTY BASKET DESIGN

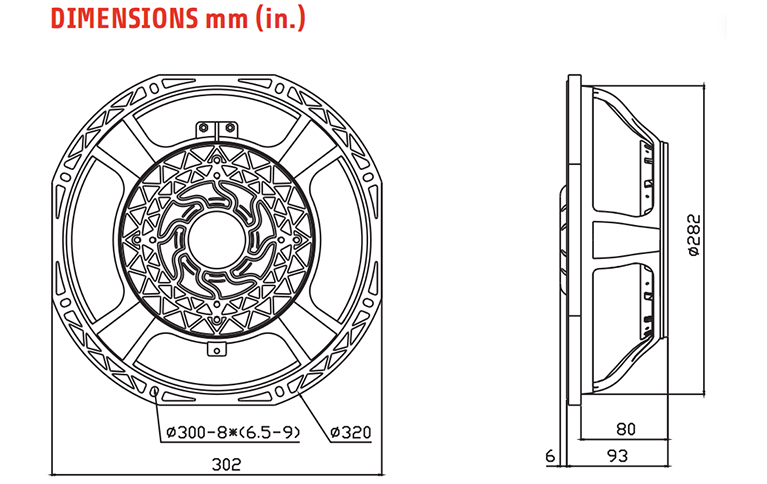

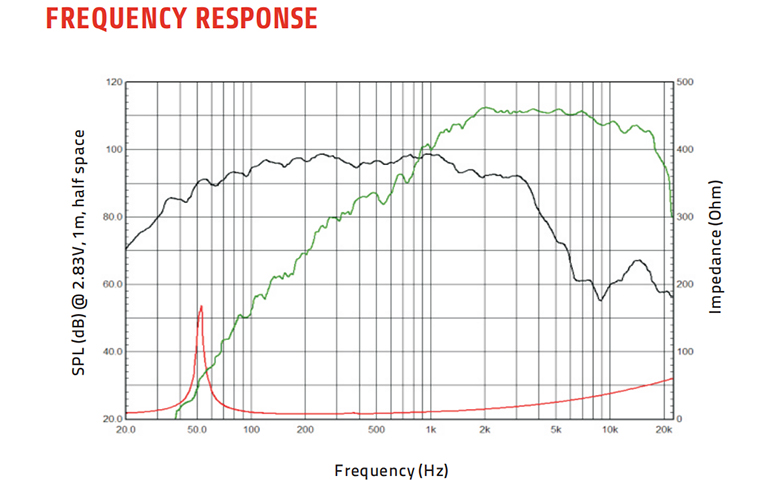

GENERAL SPECIFICATIONS
| Nominal diameter | 311(12) mm (in.) |
|---|---|
| Nominal impedance | 8 Ω |
| Minimum impedance | 7.9 Ω |
| Program power (1) | 700 W |
| AES Power rating(2) | 350 W |
| Sensitivity (3) | 96.7 dB |
| Frequency range | 61~3500 Hz |
| Voice coil diameter | 75(3) mm (in.) |
| Chassis material | Aluminium |
| Magnet material | Ferrite |
| Magnet dimensions (ODxIDxh) | 170x85x20 mm |
| Coil material | CCAW |
| Former material | Glass Fiber |
| Xmax(4) | 5.5 mm |
| Xmech(5) | 9.5 mm |
| Gap height | 8 mm |
| Voice coil Winding height | 15 mm |
| Diaphragm material | Titanium |
| Program power(1) | 160 W |
| AES Power rating(2) | 80 W |
| Sensitivity(3) | 109 dB |
| Frequency range | 800~17000 Hz |
| Voice coil diameter | 51(2) mm (in.) |
| Coil material | ALR |
SMALL SIGNAL PARAMETERS
| DC resistance(Re) | 5.5 Ω |
|---|---|
| Resonance frequency(Fs) | 61.3 Hz |
| Moving mass(Mms) | 49.1 g |
| Compliance(Cms) | 0.13 mm/N |
| Force factor(BL) | 14.3 N/A |
| Mechanical Q-factor(Qms) | 23.3 |
| Electrical Q-factor(Qes) | 0.50 |
| Total Q-factor(Qts) | 0.49 |
| Equivalent air volume(Vas) | 64.4 I |
| Voice coil Inductance(Le) | 0.87 mH |
| Diaphragm area(Sd) | 581 cm2 |
| Reference efficiency(Eta O) | 2.83 % |
SHIPPING INFORMATION
| Net weight | 6.9 Kg |
|---|---|
| Multipack size (1) (W x D x H) | 362X362X341 mm |
| Multipack weight | 8 Kg |
OTHERS
(1)Program power is defined as 3 dB greater than AES Power.
(2) Tested for two hours using a continuous, band-limited pink noise signal as per AES 2-1984 Rev. 2003. Loudspeaker tested in free air.
(3) From T/S parameters, measured with LMS DA LPM module.
(4) The Xmax is calculated as: (Hvc - Hg)/2+ Hg/4. Hvc is the voice coil height and Hg the gap height.
(5) The Xmech is calculated as: (Hvc - Hg)/2 +(Hg-2). Hvc is the voice coil height and Hg the gap height.
(6) Thiele-Small parameters are measured after preconditioning: a) at 20°C- 22°C, 50% humidity for 2 hours; b) by LMS LSI measurement.
