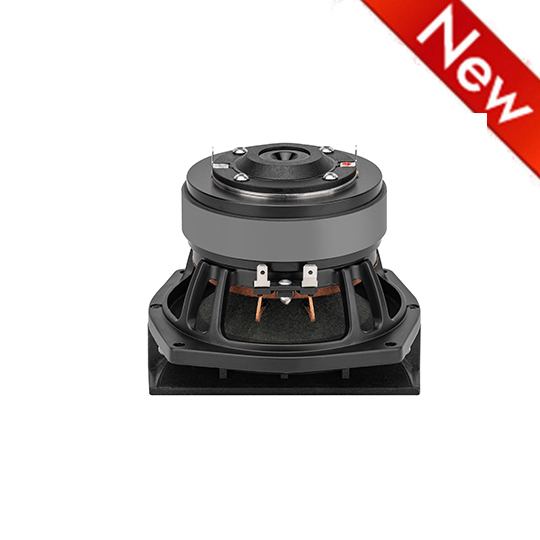

5FTF38TX2 Coaxials 5 inches
Notes
- 1.5 INCH WOOFER CCA VOICE COIL
- 1.5 INCH COMPRESSION ALUMINIUM VOICE COIL
- 91 dB/SPL SENSITIVITY
- 200 WATT PROGRAM POWER HANDING
- FEM OPTIMIZED MOTOR AND SUSPENSIONS
- OPTIMIZED COOLING SYSTEM
- RESONANCE FREE AND HEAVY DUTY BASKET DESIGN
GENERAL SPECIFICATIONS

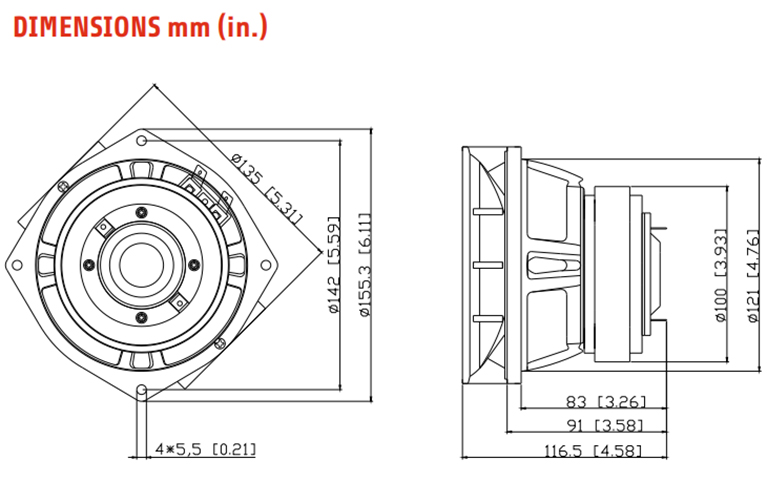

| Nominal diameter | 135-155.5(5.5) mm (in.) |
|---|---|
| Nominal impedance | 8 Ω |
| Minimum impedance | 6.9 Ω |
| Program power (1) | 200 W |
| AES Power rating(2) | 100 W |
| Sensitivity (3) | 91 dB |

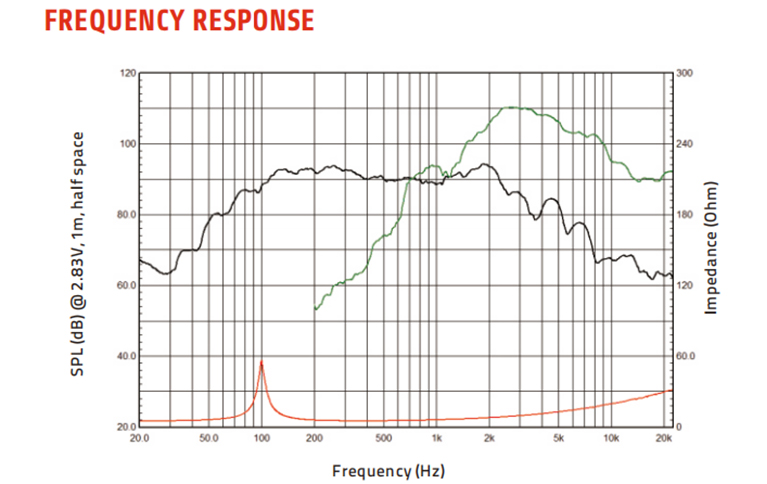

| Frequency range | 99~3000 Hz |
| Voice coil diameter | 38.5(1.5) mm (in.) |
| Chassis material | Aluminium |
| Magnet material | Ferrite |
| Magnet dimensions (ODxIDxh) | 100x50x20 mm |
| Coil material | CCAW |
| Former material | Glass Fiber |
| Xmax(4) | 3 mm |
| Xmech(5) | 5.5 mm |
| Gap height | 6 mm |
| Voice coil Winding height | 9 mm |
| Diaphragm material | Polymer Materials |
| Program power(1) | 80 W |
| AES Power rating(2) | 40 W |
| Sensitivity(3) | 109 dB |
| Frequency range | 1500~20000 Hz |
| Voice coil diameter | 38(1.5) mm (in.) |
| Coil material | ALW |
SMALL SIGNAL PARAMETERS
| DC resistance(Re) | 5.5 Ω |
|---|---|
| Resonance frequency(Fs) | 99.1 Hz |
| Moving mass(Mms) | 6.6 g |
| Compliance(Cms) | 0.39 mm/N |
| Force factor(BL) | 5.25 N/A |
| Mechanical Q-factor(Qms) | 12.8 |
| Electrical Q-factor(Qes) | 0.62 |
| Total Q-factor(Qts) | 0.59 |
| Equivalent air volume(Vas) | 4.0 I |
| Voice coil Inductance(Le) | 0.47 mH |
| Diaphragm area(Sd) | 87 cm2 |
| Reference efficiency(Eta O) | 0.76 % |
SHIPPING INFORMATION
| Net weight | 1.65 Kg |
|---|---|
| Multipack size (1) (W x D x H) | 155X155X140 mm |
| Multipack weight | 2 Kg |
OTHERS
(1)Program power is defined as 3 dB greater than AES Power.
(2) Tested for two hours using a continuous, band-limited pink noise signal as per AES 2-1984 Rev. 2003. Loudspeaker tested in free air.
(3) From T/S parameters, measured with LMS DA LPM module.
(4) The Xmax is calculated as: (Hvc - Hg)/2+ Hg/4. Hvc is the voice coil height and Hg the gap height.
(5) The Xmech is calculated as: (Hvc - Hg)/2 +(Hg-2). Hvc is the voice coil height and Hg the gap height.
(6) Thiele-Small parameters are measured after preconditioning: a) at 20°C- 22°C, 50% humidity for 2 hours; b) by LMS LSI measurement.
