NC7506PT HF Drivers 3 inches
Notes
- 3 INCH WOOFER EDGEWOUND CCA VOICE COIL
- 109 dB/SPL SENSITIVITY
- 220 WATT PROGRAM POWER HANDING
- FEM OPTIMIZED MOTOR ,PHASEPLUG AND DIAPHRAGM
- 500-19000 Hz FREQUENCY RANGE
- TITANIUM DIAPHRAGM AND SUSPENSION
- VOICE COIL COPPER DEMODULATION RING
- 109 dB/SPL SENSITIVITY
- 220 WATT PROGRAM POWER HANDING
- FEM OPTIMIZED MOTOR ,PHASEPLUG AND DIAPHRAGM
- 500-19000 Hz FREQUENCY RANGE
- TITANIUM DIAPHRAGM AND SUSPENSION
- VOICE COIL COPPER DEMODULATION RING

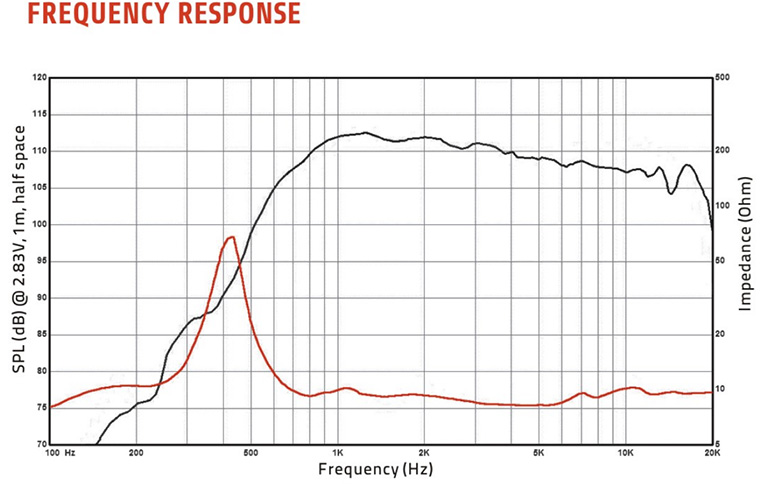

GENERAL SPECIFICATIONS
| Throat diameter | 36(1.4) mm (in.) |
|---|---|
| Nominal impedance | 8 Ω |
| Minimum impedance | 6.9 Ω |
| Program power (1) | 220 W |
| AES Power rating(2) | 110 W |
| Sensitivity (3) | 109 dB |
| Frequency range | 500-19000 Hz |
| Voice coil diameter | 75(3) mm (in.) |
| Magnet material | Neodymium |

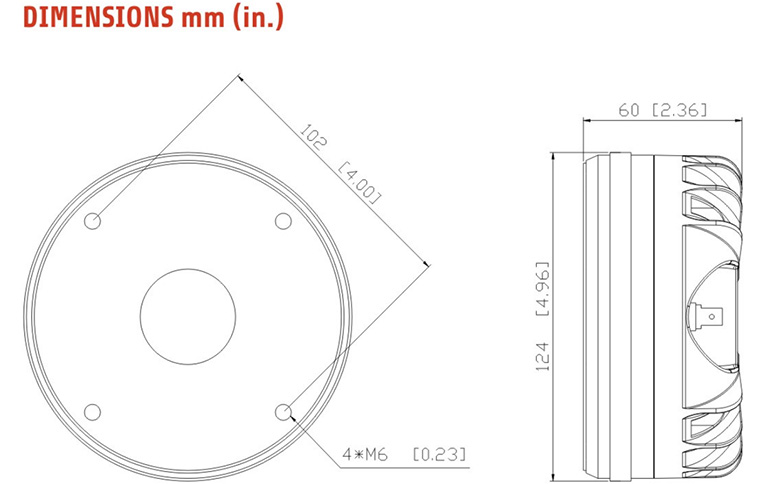

| Magnet dimensions (ODxIDxh) | 124 mm |
| Coil material | CCAR |
| Former material | Kapton |
| Diaphragm material | Titanium |
| Suspension material | Polyester |
| Voice coil Inductance | 0.10 |
| Flux density | 2.0 T |
| Recommended crossover (4) | 1200 Hz |
SHIPPING INFORMATION
| Net weight | 2.1 Kg |
|---|---|
| Multipack size (12) (W x D x H) | 400 x 270 x165 mm |
| Multipack weight | 26.8 (12pcs) Kg |
OTHERS
(1)Program power is defined as 3 dB greater than AES Power.
(2)Horn loaded test 2h with continuous, brand-limited(1200-18000Hz,12dB/oct)pink noise as per AES 2-1984 Rev.2003.
(3)Measured on axis at 2.83V,1m, driver loaded with 90°× 40° horn, SPL average in the frequency range 1200- 18000 Hz.
(4)High pass filter with slop 12 dB/oct. or higher
(2)Horn loaded test 2h with continuous, brand-limited(1200-18000Hz,12dB/oct)pink noise as per AES 2-1984 Rev.2003.
(3)Measured on axis at 2.83V,1m, driver loaded with 90°× 40° horn, SPL average in the frequency range 1200- 18000 Hz.
(4)High pass filter with slop 12 dB/oct. or higher
