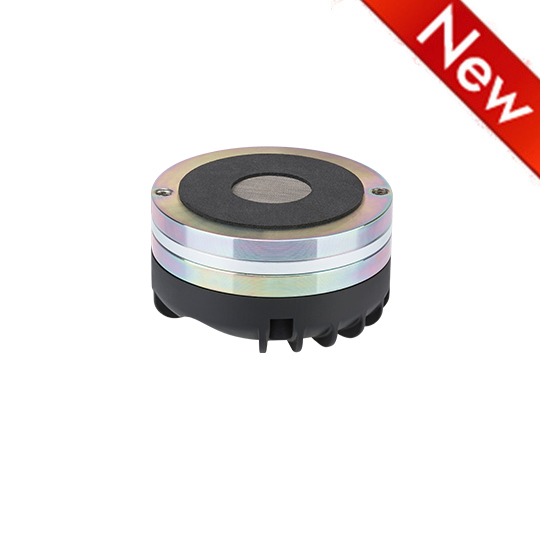

NC4441P HF Drivers 1.75 inches
Notes
- 1.75 INCH CCAR VOICE COIL
- 108.5 dB/SPL SENSITIVITY
- 120 WATT PROGRAM POWER HANDING
- 1200-19000 Hz FREQUENCY RANGE
-COMPOSITE POLYIMIDE
- VOICE COIL COPPER DEMODULATION RING
- 108.5 dB/SPL SENSITIVITY
- 120 WATT PROGRAM POWER HANDING
- 1200-19000 Hz FREQUENCY RANGE
-COMPOSITE POLYIMIDE
- VOICE COIL COPPER DEMODULATION RING
GENERAL SPECIFICATIONS
| Throat diameter | 25.4(1) mm (in.) |
|---|---|
| Nominal impedance | 8 Ω |
| Minimum impedance | 6.1 Ω |
| Program power (1) | 120 W |
| AES Power rating(2) | 60 W |
| Sensitivity (3) | 108.5 dB |
| Frequency range | 1200~19000 Hz |
| Voice coil diameter | 44.4(1.75) mm (in.) |
| Magnet material | Neodymium |
| Magnet dimensions (ODxIDxh) | 85 mm |
| Coil material | CCAR |
| Former material | Kapton |
| Diaphragm material | Polyester |
| Voice coil Inductance | 0.95 |
| Flux density | 1.8 T |
| Recommended crossover (4) | 1600 Hz |
SHIPPING INFORMATION
| Net weight | 0.9 Kg |
|---|---|
| Multipack size (18) (W x D x H) | 208x188x126 mm |
| Multipack weight | 17.5 (18pcs) Kg |
OTHERS
(1)Program power is defined as 3 dB greater than AES Power.
(2)Horn loaded test 2h with continuous, brand-limited(1200-18000Hz,12dB/oct)pink noise as per AES 2-1984 Rev.2003.
(3)Measured on axis at 2.83V,1m, driver loaded with 90°× 40° horn, SPL average in the frequency range 1200- 18000 Hz.
(4)High pass filter with slop 12 dB/oct. or higher
