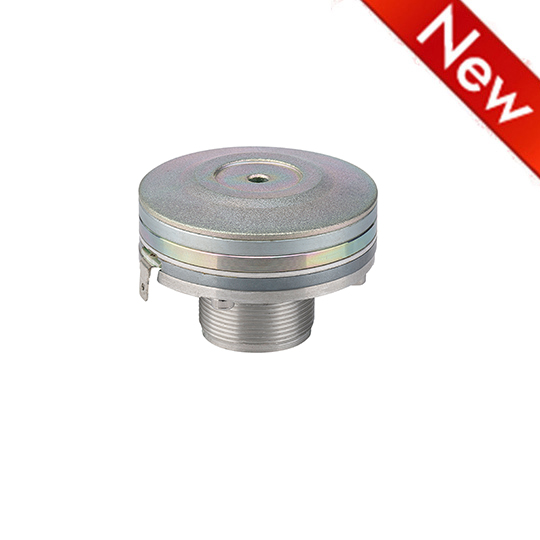

NT38002P HF Drivers 1.5 inches
Notes
- 1.5 INCH ALUMINIUM VOICE COIL
- 109.5 dB/SPL SENSITIVITY
- 100 WATT PROGRAM POWER HANDING
- FEM OPTIMIZED MOTOR ,PHASEPLUG AND DIAPHRAGM
- 1200-20000 Hz FREQUENCY RANGE
- TITANIUM DIAPHRAGM AND SUSPENSION
- 109.5 dB/SPL SENSITIVITY
- 100 WATT PROGRAM POWER HANDING
- FEM OPTIMIZED MOTOR ,PHASEPLUG AND DIAPHRAGM
- 1200-20000 Hz FREQUENCY RANGE
- TITANIUM DIAPHRAGM AND SUSPENSION
GENERAL SPECIFICATIONS
| Throat diameter | 25(1) mm (in.) |
|---|---|
| Nominal impedance | 8 Ω |
| Minimum impedance | 4.9 Ω |
| Program power (1) | 100 W |
| AES Power rating(2) | 50 W |
| Sensitivity (3) | 109.5 dB |
| Frequency range | 1200~20000 Hz |
| Voice coil diameter | 38(1.5) mm (in.) |
| Magnet material | Neodymium |

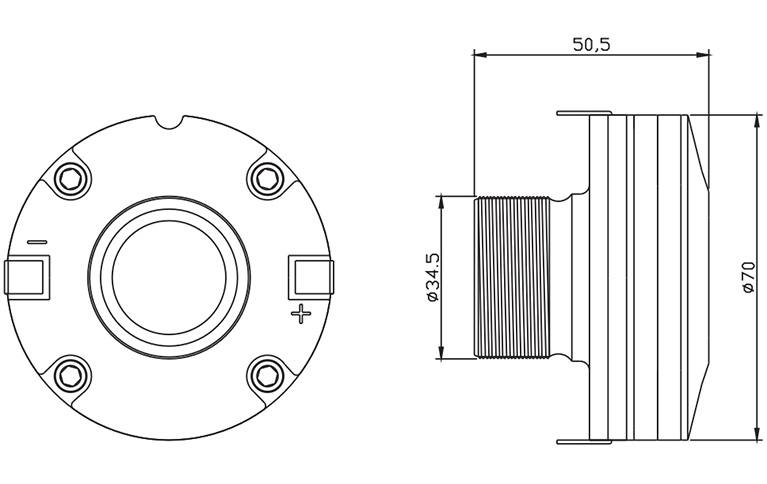

| Magnet dimensions (ODxIDxh) | 70 mm |
| Coil material | ALW |
| Former material | Kapton |
| Diaphragm material | Polyester |
| Voice coil Inductance | 0.6 |
| Flux density | 2.0 T |
| Recommended crossover (4) | 2000 Hz |
SHIPPING INFORMATION
| Net weight | 0.58 Kg |
|---|---|
| Multipack weight | 18.8( 30PCS ) Kg |
OTHERS
(1)Program power is defined as 3 dB greater than AES Power.
(2)Horn loaded test 2h with continuous, brand-limited(1200-18000Hz,12dB/oct)pink noise as per AES 2-1984 Rev.2003.

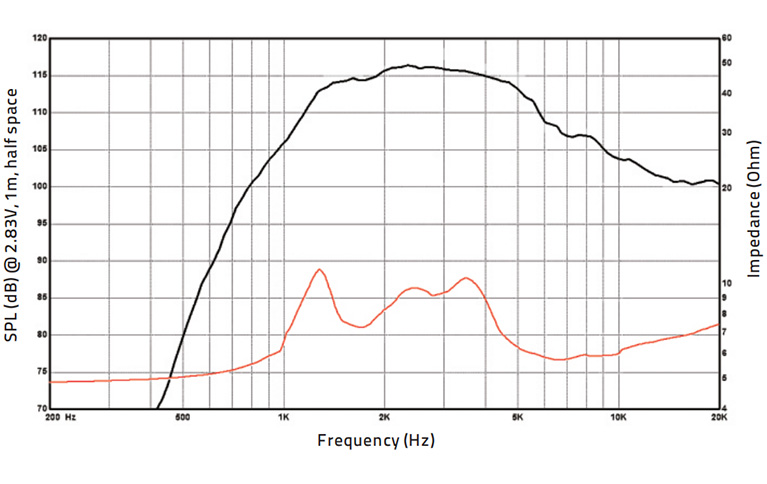

(3)Measured on axis at 2.83V,1m, driver loaded with 90°× 40° horn, SPL average in the frequency range 1200- 18000 Hz.
(4)High pass filter with slop 12 dB/oct. or higher
(2)Horn loaded test 2h with continuous, brand-limited(1200-18000Hz,12dB/oct)pink noise as per AES 2-1984 Rev.2003.
(3)Measured on axis at 2.83V,1m, driver loaded with 90°× 40° horn, SPL average in the frequency range 1200- 18000 Hz.
(4)High pass filter with slop 12 dB/oct. or higher
