- 1 INCH COPPER VOICE COIL

- 89.5 dB/SPL SENSITIVITY

- 60 WATT PROGRAM POWER HANDING

- FEM OPTIMIZED MOTOR AND SUSPENSIONS

- OPTIMIZED COOLING SYSTEM

- RESONANCE FREE AND HEAVY DUTY BASKET DESIGN

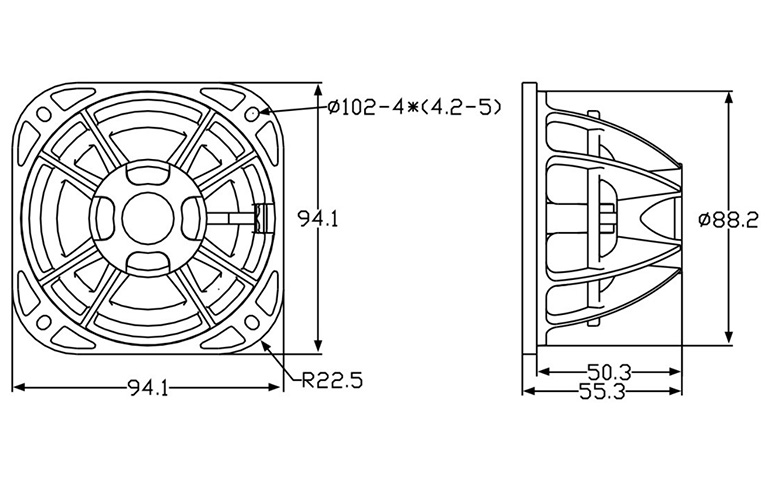

Nominal diameter	94.1(3.5) mm (in.)
Nominal impedance	8 Ω
Minimum impedance	7 Ω
Program power (1)	60 W
AES Power rating(2)	30 W
Sensitivity (3)	89.5 dB
Frequency range	138~19000 Hz
Voice coil diameter	25.4(1) mm (in.)
Chassis material	Plastic
Magnet material	Neodymium
Magnet dimensions (ODxIDxh)	24.5x 8 mm
Coil material	CCAW
Former material	Paper
Xmax(4)	1.75 mm
Xmech(5)	2.75 mm
Gap height	4 mm
Voice coil Winding height	5.5 mm

DC resistance(Re)	6.4 Ω
Resonance frequency(Fs)	138.5 Hz
Moving mass(Mms)	2.2 g
Compliance(Cms)	0.6 mm/N
Force factor(BL)	3.4 N/A
Mechanical Q-factor(Qms)	3.5
Electrical Q-factor(Qes)	1.0
Total Q-factor(Qts)	0.78
Equivalent air volume(Vas)	2.1 I
Voice coil Inductance(Le)	0.7 mH
Diaphragm area(Sd)	50 cm2
Reference efficiency(Eta O)	0.54 %

Net weight	0.18 Kg
Multipack size (1) (W x D x H)	445 x342 x216 mm
Multipack weight	7.8 ( 36 pcs ) Kg

(1)Program power is defined as 3 dB greater than AES Power.
(2) Tested for two hours using a continuous, band-limited pink noise signal as per AES 2-1984 Rev. 2003. Loudspeaker tested in free air.
(3) From T/S parameters, measured with LMS DA LPM module.
(4) The Xmax is calculated as: (Hvc - Hg)/2+ Hg/4. Hvc is the voice coil height and Hg the gap height.
(5) The Xmech is calculated as: (Hvc - Hg)/2 +(Hg-2). Hvc is the voice coil height and Hg the gap height.
(6) Thiele-Small parameters are measured after preconditioning: a) at 20°C- 22°C, 50% humidity for 2 hours; b) by LMS LSI measurement.
