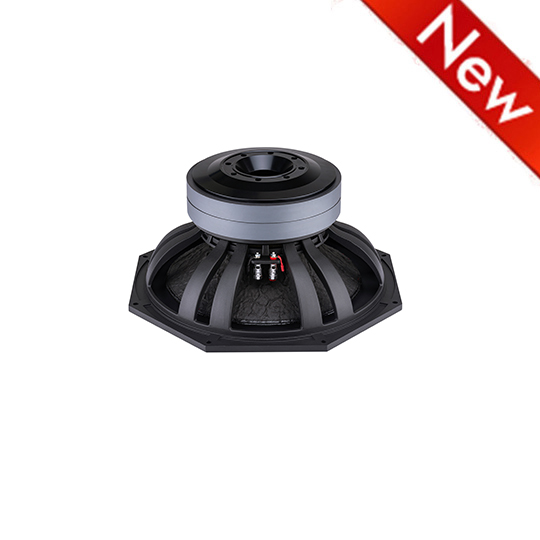

15FWS100N2 Subwoofers 15 inchs

Notes
- 4 INCH COPPER VOICE COIL
- 93.7 dB/SPL SENSITIVITY
- 4000 WATT PROGRAM POWER HANDING
- FEM OPTIMIZED MOTOR AND SUSPENSIONS
- 46mm PEAK TO PEAK MAXIMUM EXCURSION
- OPTIMIZED COOLING SYSTEM
- DOUBLE SPIDER
- RESONANCE FREE AND HEAVY DUTY BASKET DESIGN
- TRIPLE ROLL SURROUND
GENERAL SPECIFICATIONS

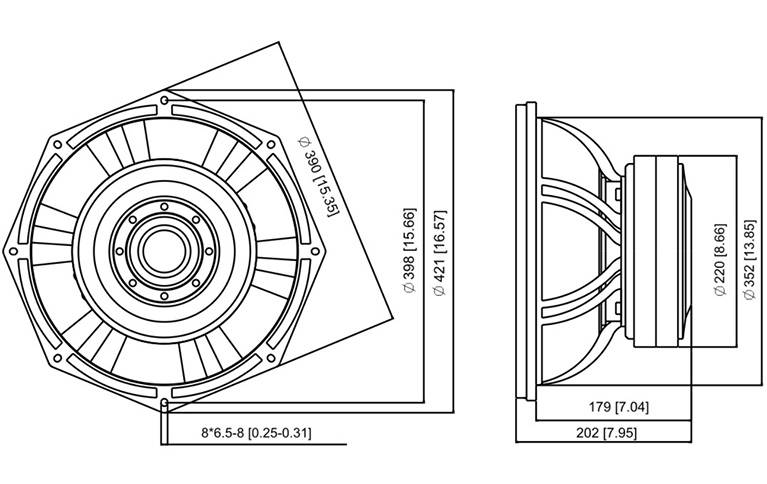

Nominal diameter | 389-421(15) mm (in.) |
---|---|
Nominal impedance | 1.8+1.8 Ω |
Minimum impedance | 1.8+1.8 Ω |
Program power (1) | 4000 W |
AES Power rating(2) | 2000 W |

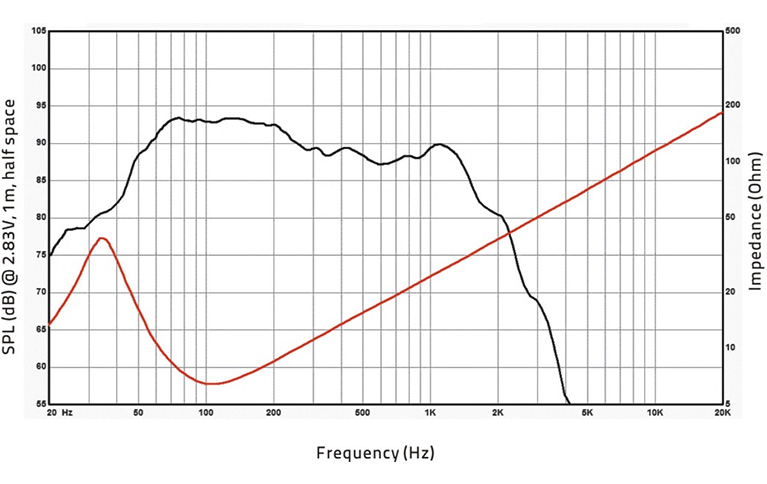

Sensitivity (3) | 93.7 dB |
Frequency range | 34~1000 Hz |
Voice coil diameter | 100(4) mm (in.) |
Chassis material | Aluminium |
Magnet material | Ferrite |
Magnet dimensions (ODxIDxh) | 220X110X25 2PCS mm |
Coil material | CCAW/4L |
Former material | Glass Fiber |
Xmax(4) | 16 mm |
Xmech(5) | 23 mm |
Gap height | 12 mm |
Voice coil Winding height | 38 mm |
SMALL SIGNAL PARAMETERS
DC resistance(Re) | 1.8+1.8 Ω |
---|---|
Resonance frequency(Fs) | 34 Hz |
Moving mass(Mms) | 234 g |
Compliance(Cms) | 0.09 mm/N |
Force factor(BL) | 25.1 N/A |
Mechanical Q-factor(Qms) | 2.8 |
Electrical Q-factor(Qes) | 0.29 |
Total Q-factor(Qts) | 0.26 |
Equivalent air volume(Vas) | 82 I |
Voice coil Inductance(Le) | 2.82 mH |
Diaphragm area(Sd) | 804 cm2 |
Reference efficiency(Eta O) | 1.2 % |
SHIPPING INFORMATION
Net weight | 15.5 Kg |
---|---|
Multipack size (1) (W x D x H) | 410x410x242 mm |
Multipack weight | 16.6 Kg |
OTHERS
(1)Program power is defined as 3 dB greater than AES Power.
(2) Tested for two hours using a continuous, band-limited pink noise signal as per AES 2-1984 Rev. 2003. Loudspeaker tested in free air.
(3) From T/S parameters, measured with LMS DA LPM module.
(4) The Xmax is calculated as: (Hvc - Hg)/2+ Hg/4. Hvc is the voice coil height and Hg the gap height.
(5) The Xmech is calculated as: (Hvc - Hg)/2 +(Hg-2). Hvc is the voice coil height and Hg the gap height.
(6) Thiele-Small parameters are measured after preconditioning: a) at 20°C- 22°C, 50% humidity for 2 hours; b) by LMS LSI measurement.
