- 3 INCH COPPER VOICE COIL

- 98 dB/SPL SENSITIVITY

- 900 WATT PROGRAM POWER HANDING

- FEM OPTIMIZED MOTOR AND SUSPENSIONS

- OPTIMIZED COOLING SYSTEM

- RESONANCE FREE AND HEAVY DUTY BASKET DESIGN

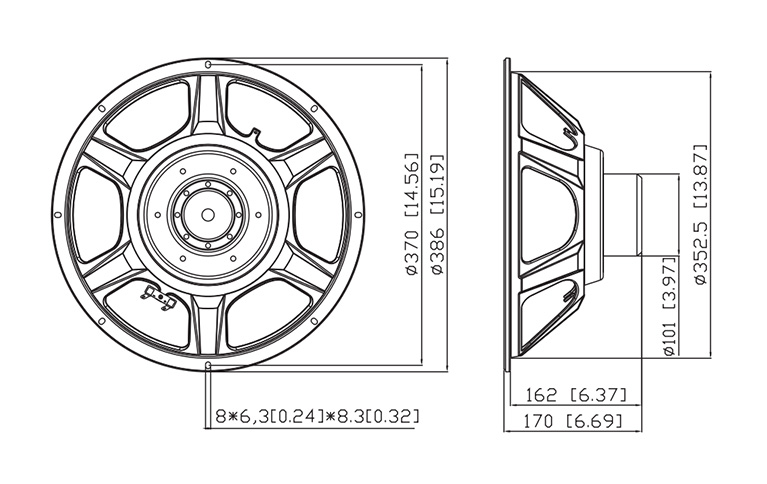

Nominal diameter	386(15) mm (in.)
Nominal impedance	8 Ω
Minimum impedance	6.5 Ω
Program power (1)	900 W
AES Power rating(2)	450 W
Sensitivity (3)	98 dB

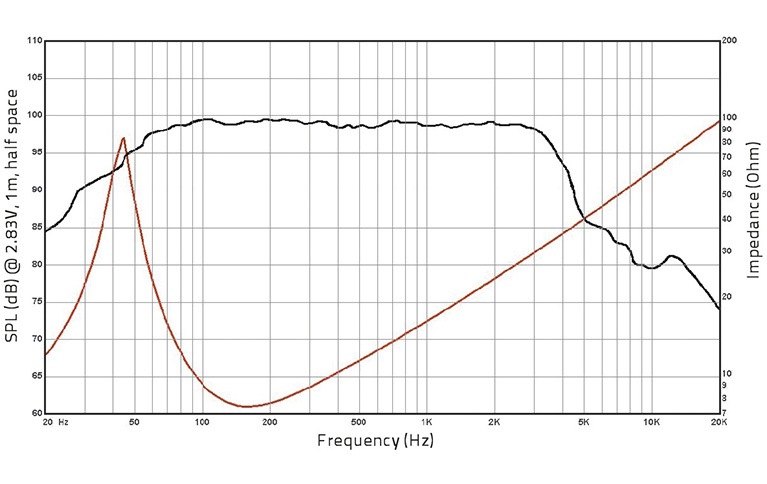

Frequency range	44 ~ 3000 Hz
Voice coil diameter	75(3) mm (in.)
Chassis material	Steel
Magnet material	Neodymium
Magnet dimensions (ODxIDxh)	74 x 15 x 10 mm
Coil material	SV
Former material	Glass Fiber
Xmax(4)	7.5 mm
Xmech(5)	13 mm
Gap height	10 mm
Voice coil Winding height	20 mm

DC resistance(Re)	5.5 Ω
Resonance frequency(Fs)	44 Hz
Moving mass(Mms)	85 g
Compliance(Cms)	0.14 mm/N
Force factor(BL)	18.8 N/A
Mechanical Q-factor(Qms)	8.7
Electrical Q-factor(Qes)	0.36
Total Q-factor(Qts)	0.35
Equivalent air volume(Vas)	131 I
Voice coil Inductance(Le)	0.80 mH
Diaphragm area(Sd)	880 cm2
Reference efficiency(Eta O)	2.7 %

Net weight	3.2 Kg
Multipack size (2) (W x D x H)	410 x 410 x 390 mm
Multipack weight	7.2 Kg

(1)Program power is defined as 3 dB greater than AES Power.
(2) Tested for two hours using a continuous, band-limited pink noise signal as per AES 2-1984 Rev. 2003. Loudspeaker tested in free air.
(3) From T/S parameters, measured with LMS DA LPM module.
(4) The Xmax is calculated as: (Hvc - Hg)/2+ Hg/4. Hvc is the voice coil height and Hg the gap height.
(5) The Xmech is calculated as: (Hvc - Hg)/2 +(Hg-2). Hvc is the voice coil height and Hg the gap height.
(6) Thiele-Small parameters are measured after preconditioning: a) at 20°C- 22°C, 50% humidity for 2 hours; b) by LMS LSI measurement.
