- 2 INCH EDGEWOUND CCA VOICE COIL

- 97 dB/SPL SENSITIVITY

- 300 WATT PROGRAM POWER HANDING

- FEM OPTIMIZED MOTOR AND SUSPENSIONS

- OPTIMIZED COOLING SYSTEM

- RESONANCE FREE AND HEAVY DUTY BASKET DESIGN

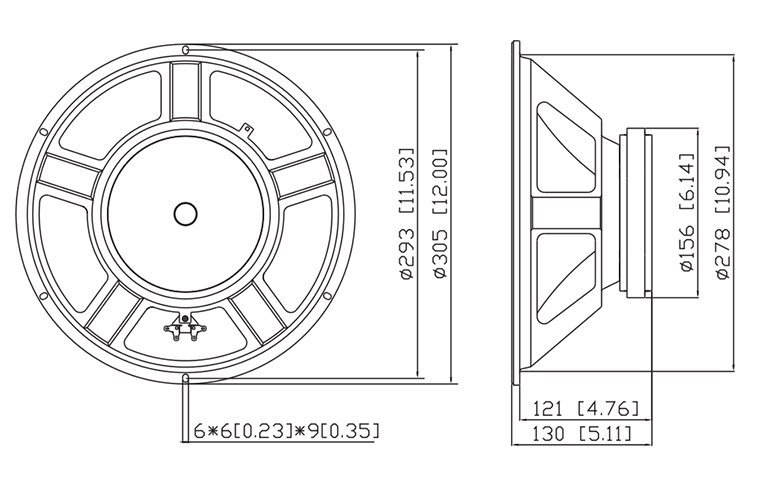

Nominal diameter	305(12) mm (in.)
Nominal impedance	8 Ω
Minimum impedance	5.8 Ω
Program power (1)	300 W
AES Power rating(2)	150 W

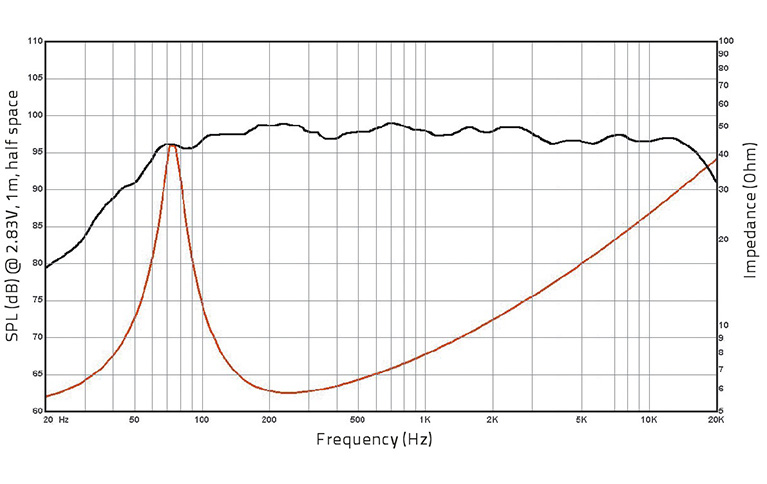

Sensitivity (3)	97.5 dB
Frequency range	74 ~ 16000 Hz
Voice coil diameter	50(2) mm (in.)
Chassis material	Steel
Magnet material	Ferrite
Magnet dimensions (ODxIDxh)	156 x 80 x 20 mm
Coil material	CCAW
Former material	Glass Fiber
Xmax(4)	3 mm
Xmech(5)	7 mm
Gap height	8 mm
Voice coil Winding height	10 mm

DC resistance(Re)	5 Ω
Resonance frequency(Fs)	74 Hz
Moving mass(Mms)	32 g
Compliance(Cms)	0.14 mm/N
Force factor(BL)	11 N/A
Mechanical Q-factor(Qms)	6.5
Electrical Q-factor(Qes)	0.77
Total Q-factor(Qts)	0.69
Equivalent air volume(Vas)	62 I
Voice coil Inductance(Le)	0.70 mH
Diaphragm area(Sd)	533 cm2
Reference efficiency(Eta O)	3.2 %

Net weight	4.1 Kg
Multipack size (2) (W x D x H)	325 x 325 x 310 mm
Multipack weight	9 Kg

(1)Program power is defined as 3 dB greater than AES Power.
(2) Tested for two hours using a continuous, band-limited pink noise signal as per AES 2-1984 Rev. 2003. Loudspeaker tested in free air.
(3) From T/S parameters, measured with LMS DA LPM module.
(4) The Xmax is calculated as: (Hvc - Hg)/2+ Hg/4. Hvc is the voice coil height and Hg the gap height.
(5) The Xmech is calculated as: (Hvc - Hg)/2 +(Hg-2). Hvc is the voice coil height and Hg the gap height.
(6) Thiele-Small parameters are measured after preconditioning: a) at 20°C- 22°C, 50% humidity for 2 hours; b) by LMS LSI measurement.
