- 2.5 INCH COPPER VOICE COIL

- 93.8 dB/SPL SENSITIVITY

- 800 WATT PROGRAM POWER HANDING

- FEM OPTIMIZED MOTOR AND SUSPENSIONS

- OPTIMIZED COOLING SYSTEM

- RESONANCE FREE AND HEAVY DUTY BASKET DESIGN

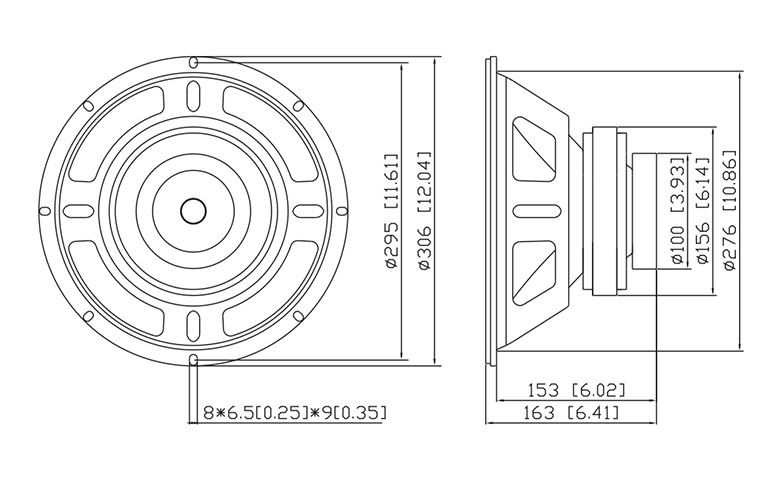

Nominal diameter	306(12) mm (in.)
Nominal impedance	8 Ω
Minimum impedance	8 Ω
Program power (1)	800 W
AES Power rating(2)	400 W
Sensitivity (3)	93.8 dB
Frequency range	33 ~ 2500 Hz
Voice coil diameter	65(2.5) mm (in.)
Chassis material	Steel
Magnet material	Ferrite
Magnet dimensions (ODxIDxh)	156x80x20 100x60x20 mm
Coil material	SV/4L
Former material	Aluminium
Xmax(4)	6 mm
Xmech(5)	10.5 mm
Gap height	8 mm
Voice coil Winding height	17 mm

DC resistance(Re)	5.6 Ω
Resonance frequency(Fs)	33 Hz
Moving mass(Mms)	69 g
Compliance(Cms)	0.32 mm/N
Force factor(BL)	16.90 N/A
Mechanical Q-factor(Qms)	3.19
Electrical Q-factor(Qes)	0.29
Total Q-factor(Qts)	0.27
Equivalent air volume(Vas)	120 I
Voice coil Inductance(Le)	1.10 mH
Diaphragm area(Sd)	514 cm2
Reference efficiency(Eta O)	1.5 %

Net weight	5.1 Kg
Multipack size (2) (W x D x H)	325 x 325 x 376 mm
Multipack weight	11.2 Kg

(1)Program power is defined as 3 dB greater than AES Power.
(2) Tested for two hours using a continuous, band-limited pink noise signal as per AES 2-1984 Rev. 2003. Loudspeaker tested in free air.
(3) From T/S parameters, measured with LMS DA LPM module.
(4) The Xmax is calculated as: (Hvc - Hg)/2+ Hg/4. Hvc is the voice coil height and Hg the gap height.
(5) The Xmech is calculated as: (Hvc - Hg)/2 +(Hg-2). Hvc is the voice coil height and Hg the gap height.
(6) Thiele-Small parameters are measured after preconditioning: a) at 20°C- 22°C, 50% humidity for 2 hours; b) by LMS LSI measurement.
