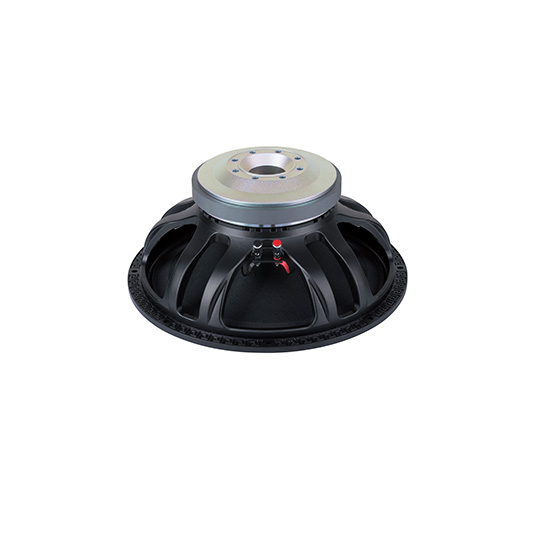

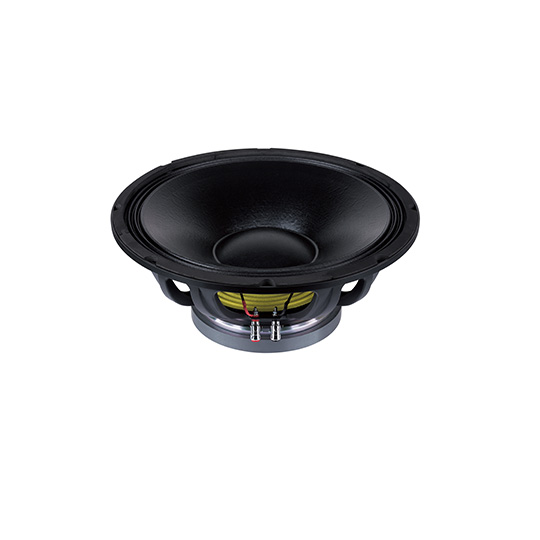

- 3.6 INCH EDGEWOUND CCA VOICE COIL

- 97 dB/SPL SENSITIVITY

- 1100 WATT PROGRAM POWER HANDING

- FEM OPTIMIZED MOTOR AND SUSPENSIONS

- OPTIMIZED COOLING SYSTEM

- RESONANCE FREE AND HEAVY DUTY BASKET DESIGN

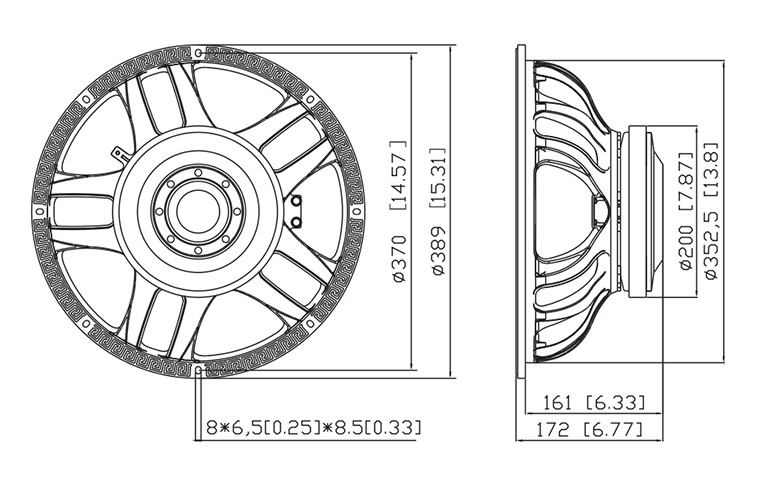

Nominal diameter	389(15) mm (in.)
Nominal impedance	8 Ω
Minimum impedance	6.4 Ω
Program power (1)	1100 W
AES Power rating(2)	550 W
Sensitivity (3)	97 dB

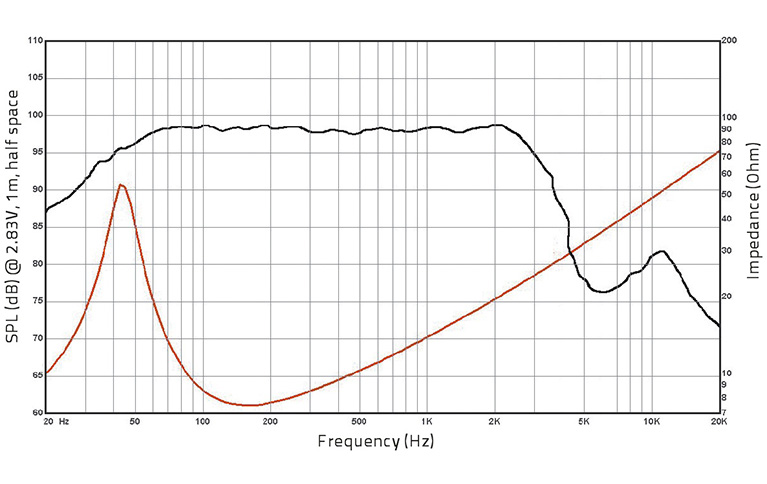

Frequency range	43 ~ 3000 Hz
Voice coil diameter	91.5(3.6) mm (in.)
Chassis material	Aluminium
Magnet material	Ferrite
Magnet dimensions (ODxIDxh)	200 x 100 x 20 mm
Coil material	CCAW
Former material	Glass Fiber
Xmax(4)	6 mm
Xmech(5)	12.5 mm
Gap height	10 mm
Voice coil Winding height	19 mm

DC resistance(Re)	5.6 Ω
Resonance frequency(Fs)	43 Hz
Moving mass(Mms)	93 g
Compliance(Cms)	0.15 mm/N
Force factor(BL)	19.6 N/A
Mechanical Q-factor(Qms)	4.48
Electrical Q-factor(Qes)	0.38
Total Q-factor(Qts)	0.35
Equivalent air volume(Vas)	142 I
Voice coil Inductance(Le)	1.00 mH
Diaphragm area(Sd)	880 cm2
Reference efficiency(Eta O)	3.2 %

Net weight	8.2 Kg
Multipack size (1) (W x D x H)	410 x 410 x 207 mm
Multipack weight	9.1 Kg

(1)Program power is defined as 3 dB greater than AES Power.
(2) Tested for two hours using a continuous, band-limited pink noise signal as per AES 2-1984 Rev. 2003. Loudspeaker tested in free air.
(3) From T/S parameters, measured with LMS DA LPM module.
(4) The Xmax is calculated as: (Hvc - Hg)/2+ Hg/4. Hvc is the voice coil height and Hg the gap height.
(5) The Xmech is calculated as: (Hvc - Hg)/2 +(Hg-2). Hvc is the voice coil height and Hg the gap height.
(6) Thiele-Small parameters are measured after preconditioning: a) at 20°C- 22°C, 50% humidity for 2 hours; b) by LMS LSI measurement.
